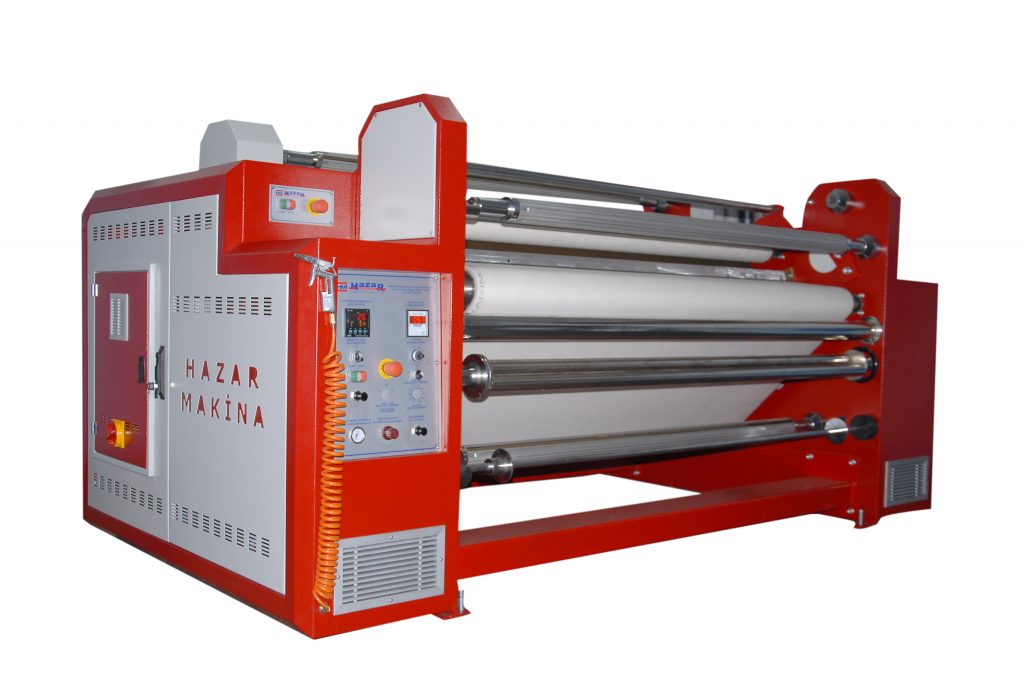

Model 405 Transfer Printing Machine

Model 405 Transfer Printing Machine

Model 405 Transfer Printing Machine


    TECHNICAL SPECIFICATIONS:

    PRINTING WIDTH : 1800 MM
    CALENDER CYLINDER DIAMETER: 405 MM
    ELECTRICAL POWER : 24 KW.
    HEATING SYSTEM : THERMAL OIL
    RESISTANCE POWER : 22.5 KW
    MOTOR POWER : 1.5 KW
    HEATING CONTROL : DIGITAL THERMOSTAT
    FELT ADJUSTMENT SYSTEM: PNEUMATIC
    FELT ARRANGEMENT SYSTEM: AUTOMATIC
    SPEED CONTROL: A.C – INVERTER
    SPEED : 0-13 MT /MIN.
    PRODUCTION SPEED : 200 – 400 MT / HOUR
    HEIGHT :1400 MM
    LENGTH : 2800 MM
    WIDTH : 1400 MM
    WEIGHT : 1640 KG
